CLASSIFICATION
PRODUCT MODEL:MR-6-210-C4L-AA
MR-6-210-C4L-AA
PRODUCT SPECIFICATION:
Rating: 12A 125V AC；
10A 250V AC(ENEC CQC)；
Contact Resistance: 50mΩ Max.；
Insulation Resistance:DC 500V 100MΩ Min.；
Dielectric Strength:AC 1500V 1 minute
Operating Force:450±200gf
Mechanical Life:50,000 cycles
Load Life:10,000 cycles
Operating Temperature: -20°C~85°C
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

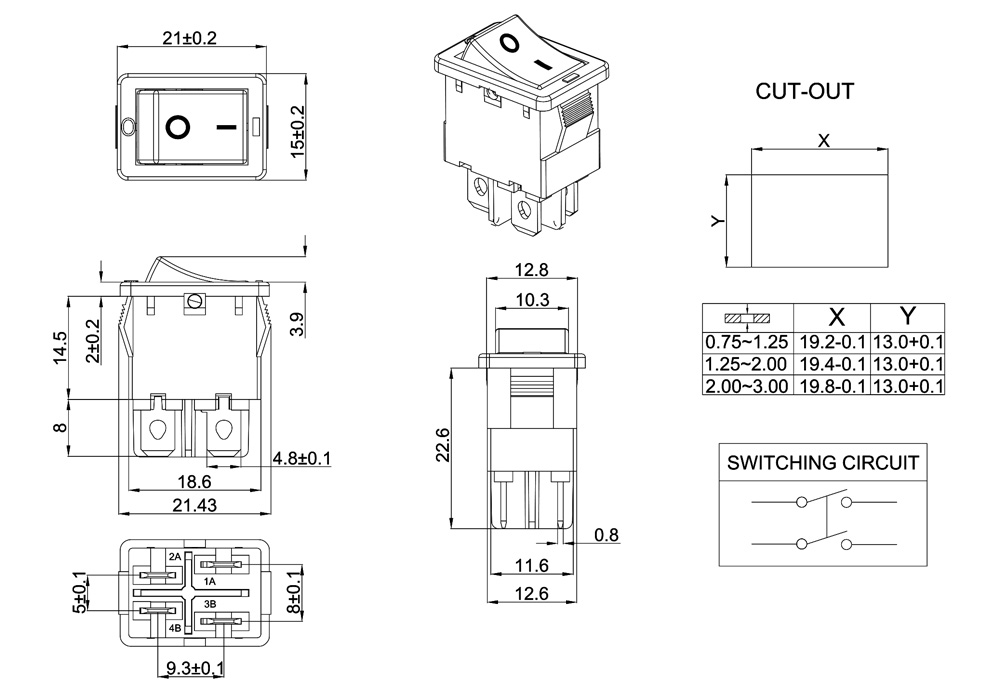

DRAWING

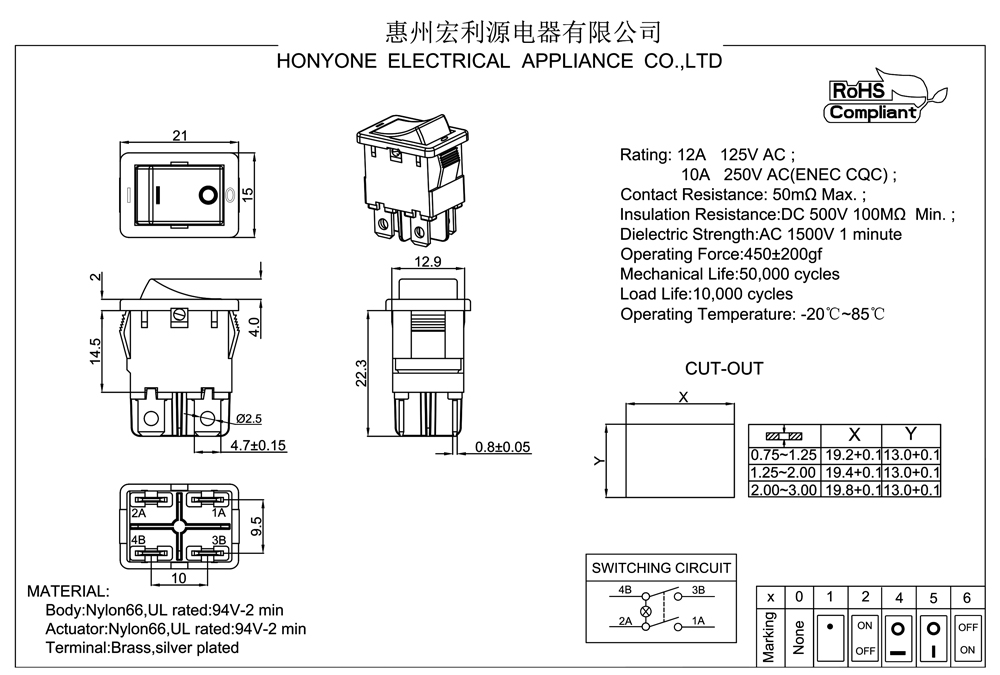

ORDER CODING DIAGRAM
