CLASSIFICATION
PRODUCT MODEL:MR-6-210-C5L-BR+防水帽
MR-6-210-C5L-BR+防水帽
PRODUCT SPECIFICATION:
Rating:12A 125VAC
10A 250VAC (CQC ENEC)
Contact Resistance:20mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Operating Force:450±200gf
Mechanical Life:50,000 Cycles
Load Life:10,000cycles
Operating Temperature:0°C~85°C
Safety Approval
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

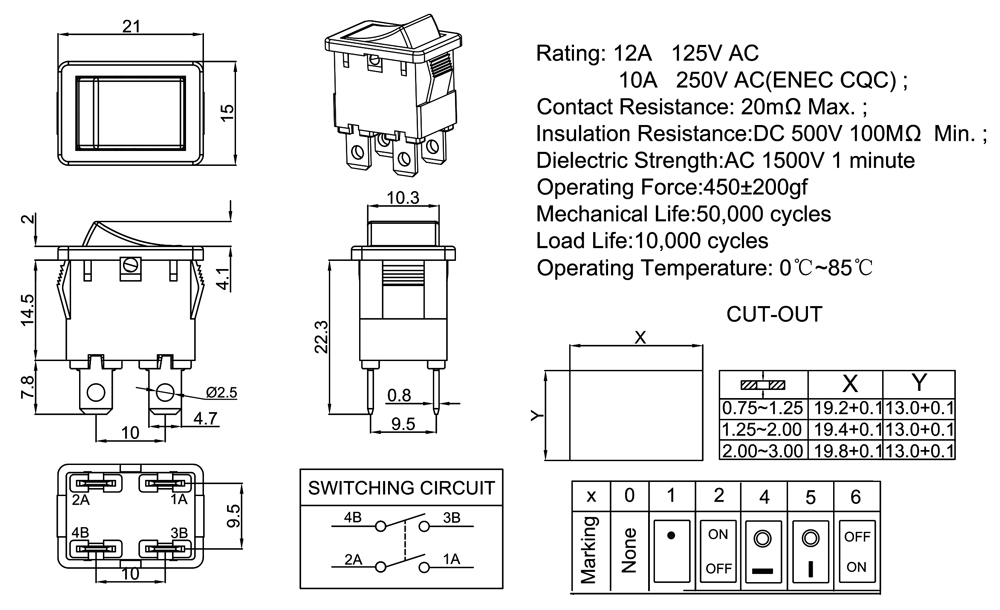

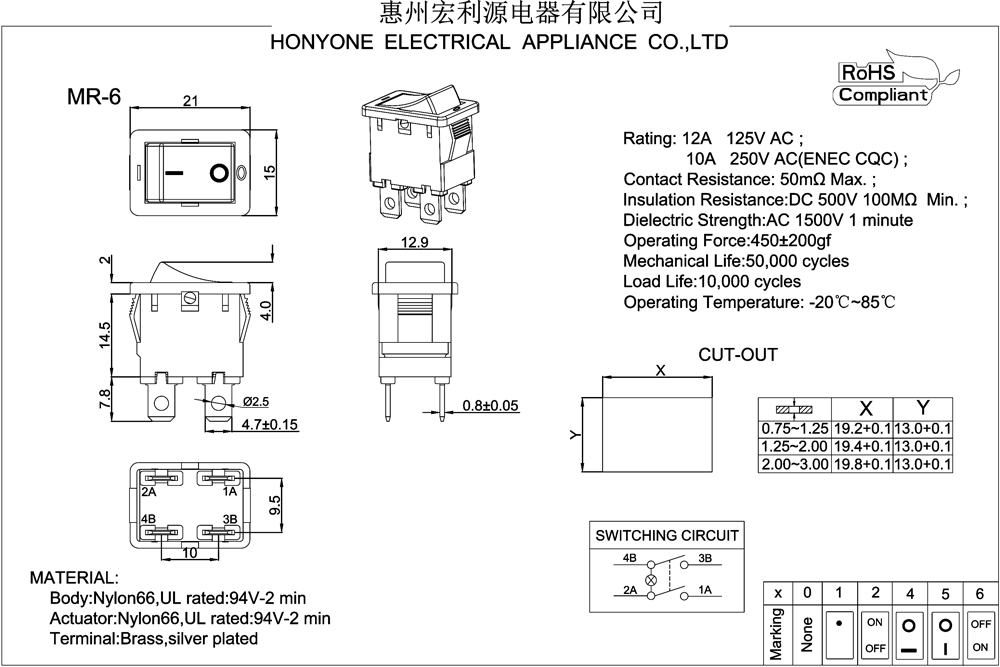

DRAWING
ORDER CODING DIAGRAM
