CLASSIFICATION
PRODUCT MODEL:WR-6-210-P1L-BB
WR-6-210-P1L-BB
PRODUCT SPECIFICATION:
Rating: 12A 125V AC
10A 250V AC
Degree of protction:IP65;
Contact Resistance: 50mΩ Max. ;
Insulation Resistance:DC 500V 100MΩ Min. ;
Dielectric Strength:AC 1500V 1 minute
Operating Force:600±150gf
Mechanical Life:50,000 cycles
Load Life:10,000 cycles
Operating Temperature: 0C~85C
10A 250V AC
Degree of protction:IP65;
Contact Resistance: 50mΩ Max. ;
Insulation Resistance:DC 500V 100MΩ Min. ;
Dielectric Strength:AC 1500V 1 minute
Operating Force:600±150gf
Mechanical Life:50,000 cycles
Load Life:10,000 cycles
Operating Temperature: 0C~85C
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

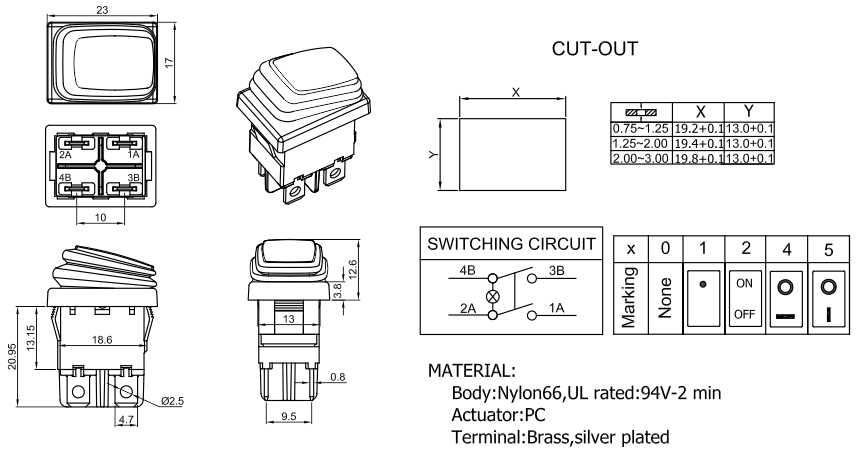

DRAWING

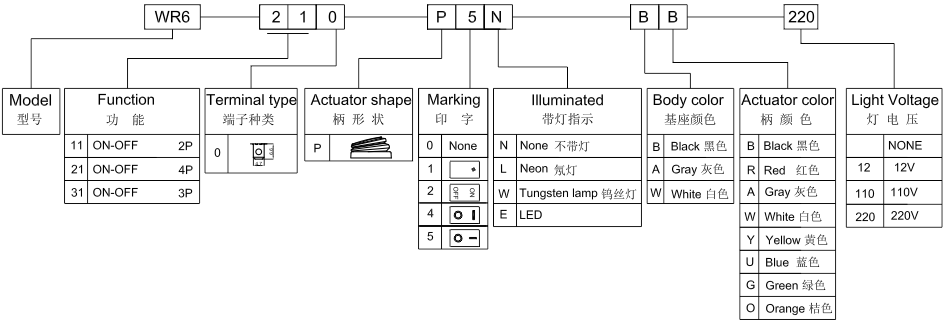

ORDER CODING DIAGRAM
