CLASSIFICATION
PRODUCT MODEL:MR-7-110-C5N-BB
MR-7-110-C5N-BB
PRODUCT SPECIFICATION:
Rating: 12A 125VAC
10A 250VAC(CQC / ENEC/CB)
Contact Resistance: 50mΩmax
Insulation Resistance: DC 500V 100M Ω min
Dielectric Strength: AC 1500V 1 minute
Operating Force:350±100gf
Mechanical Life: Over 50,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20° C~ +85° C
Functlon: OFF-(ON)
10A 250VAC(CQC / ENEC/CB)
Contact Resistance: 50mΩmax
Insulation Resistance: DC 500V 100M Ω min
Dielectric Strength: AC 1500V 1 minute
Operating Force:350±100gf
Mechanical Life: Over 50,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20° C~ +85° C
Functlon: OFF-(ON)
Safety Approval
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

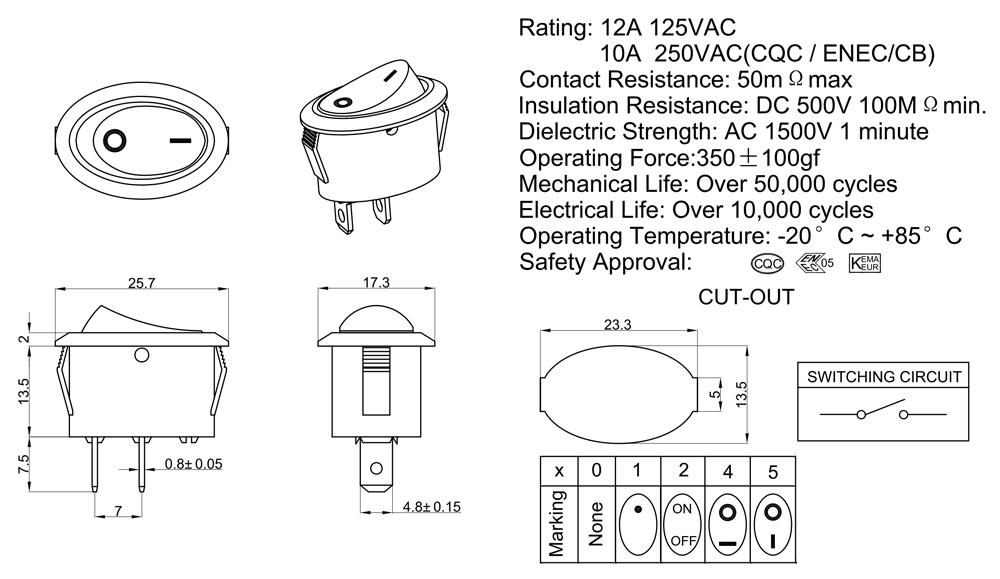

DRAWING

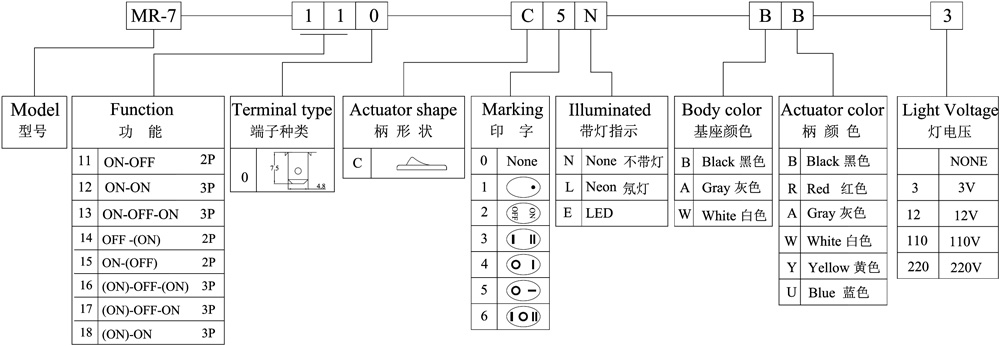

ORDER CODING DIAGRAM
