PRODUCT MODEL:X6-2706-A3M2
X6-2706-A3M2
PRODUCT SPECIFICATION:
Specification :
Contact resistance: 20m2 max. (initial)
Insulation resistance: 100MQ min. (at 500V DC)
Dielectric strength: 1 ,500V AC 50/60 Hz for 1 minute
Service life: Mechanically: 100,000 operations min.
Electrically: 30,000 operations min.
Rating: 15 A 12 Vdc or 125 Vac
10 A 24 Vdc or 250Vac
Function: .(ON)OFF一(ON)_DPDT
Contact resistance: 20m2 max. (initial)
Insulation resistance: 100MQ min. (at 500V DC)
Dielectric strength: 1 ,500V AC 50/60 Hz for 1 minute
Service life: Mechanically: 100,000 operations min.
Electrically: 30,000 operations min.
Rating: 15 A 12 Vdc or 125 Vac
10 A 24 Vdc or 250Vac
Function: .(ON)OFF一(ON)_DPDT
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

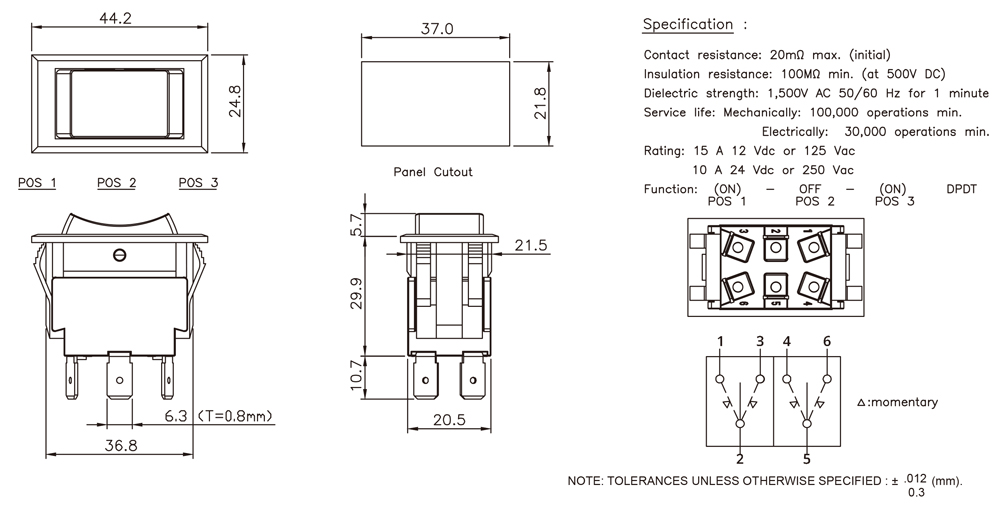

DRAWING

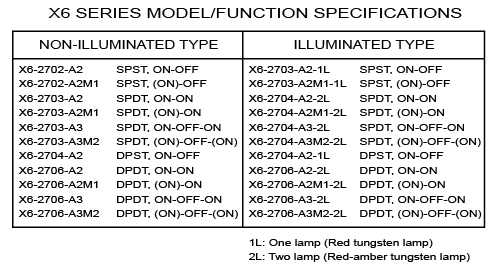

ORDER CODING DIAGRAM
