CLASSIFICATION
PRODUCT MODEL:WR-210-P5L-BW
WR-210-P5L-BW
PRODUCT SPECIFICATION:
Rating: 20A 125V AC
22A 250V AC (ENEC CB CQC)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100M Ω Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 600+150gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
Protection type depending on mounting: IP65
22A 250V AC (ENEC CB CQC)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100M Ω Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 600+150gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
Protection type depending on mounting: IP65
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

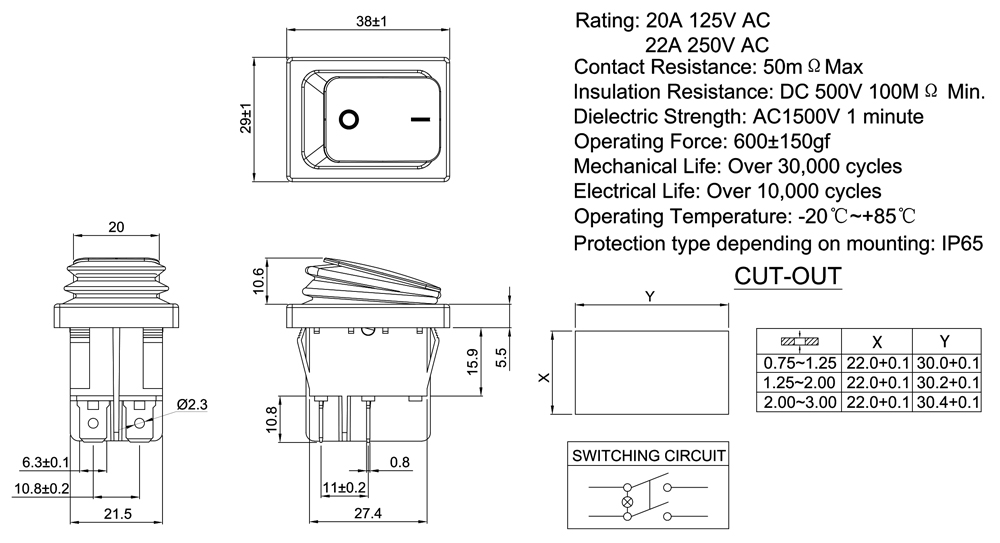

DRAWING
ORDER CODING DIAGRAM
