CLASSIFICATION
PRODUCT MODEL:LR-210-C5N-BG
LR-210-C5N-BG
PRODUCT SPECIFICATION:
Rating:20A 125VAC ( UL)
22A 250VAC ( CQC ENEC)
Degree of protction:IP55
Contact Resistance:20mΩ(Max)
Insulation Resistance:DC 500V 100MΩ (Min)
Dielectric Strength:AC 1500V 1 minute
Operating Force:500±200gf
Mechanical Life:50,000cycles
Load Life:10,000cycles
Operating Temperature:-40°C~85°C
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

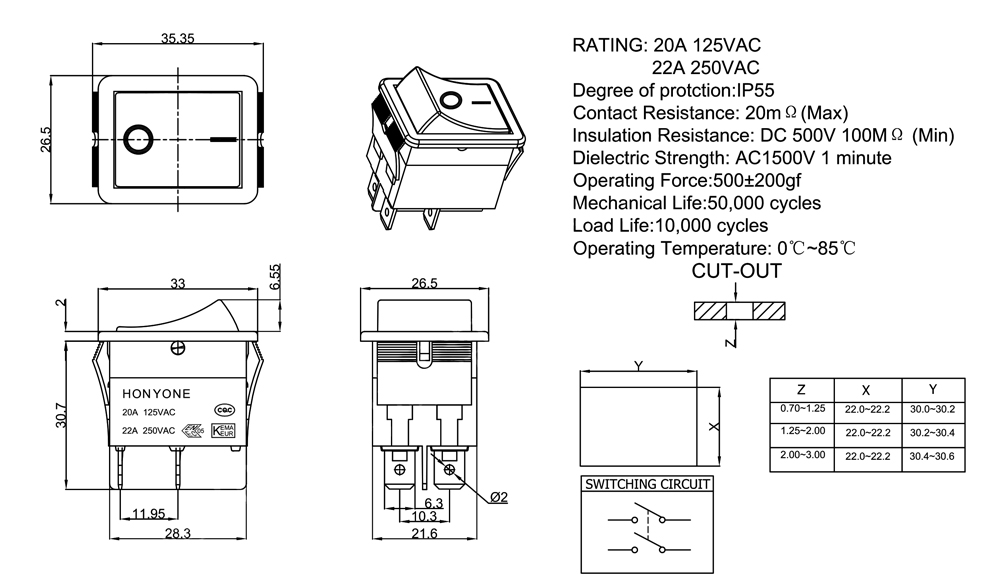

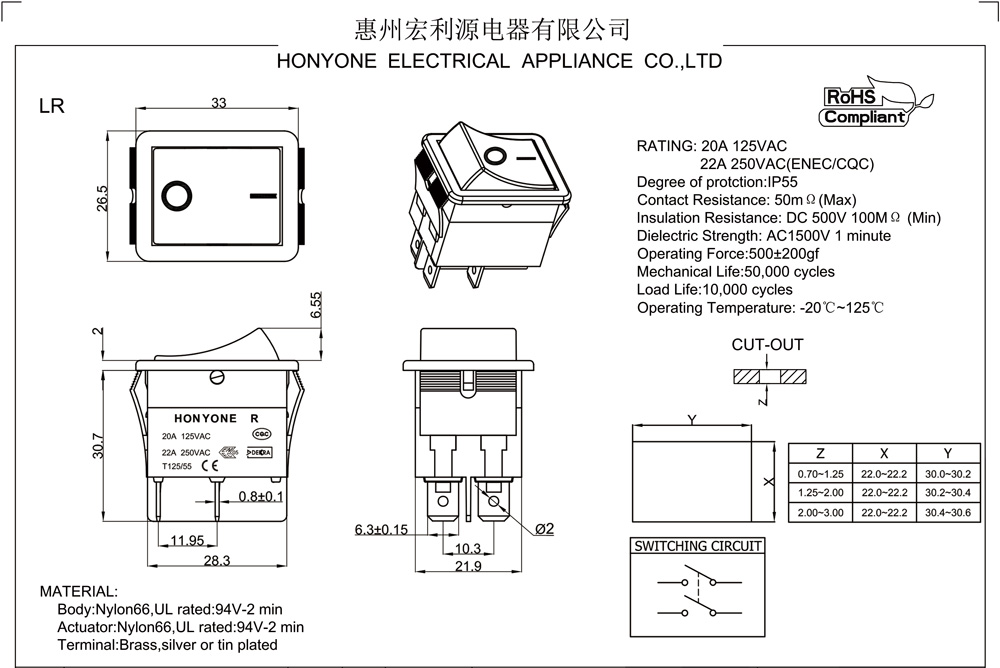

DRAWING
ORDER CODING DIAGRAM
