CLASSIFICATION
PRODUCT MODEL:TS12-12.5H-Y
TS12-12.5H-Y
PRODUCT SPECIFICATION:
Rating:50mA 12VDC
Contact Resistance:100mΩ Max .(intial)
Insulation Resistance:100MΩ Min.
Dielectric Strength:250VAC for 1 minute
Stroke:0.25±0.1mm
Operating Force:160± 50gf
Mechanical life:10,0000 Cycles Min
Contact Resistance:100mΩ Max .(intial)
Insulation Resistance:100MΩ Min.
Dielectric Strength:250VAC for 1 minute
Stroke:0.25±0.1mm
Operating Force:160± 50gf
Mechanical life:10,0000 Cycles Min
Application：
Audio / Visual 、Computer Peripherals Consumer Electronics、Instrumentation
Telecommunication、Medical Equipmen
Product word：
Led tact switches，15*15 push button switches，
circular led tact switches，12*12 push button switches，
12*12 led push button switches，15mm led tact switches，
restoration led tact switches，LED tact switches，
led push button switches,Tact push button switches

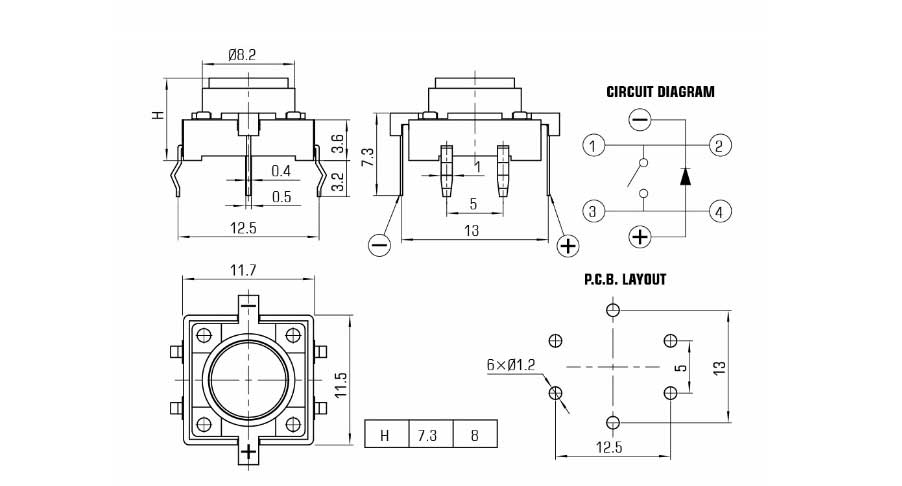

DRAWING
ORDER CODING DIAGRAM
