CLASSIFICATION
PRODUCT MODEL:PB19-T1U
PB19-T1U
PRODUCT SPECIFICATION:
Circuit :SPST
Current Rating :100mA
Voltage Rating :42VDC 42VAC
Dielectric withstanding vltage
:2000VAC for 1 minute
Contact Resistance :100mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Opearating life :2,000,000 Cycles Min
Soldear Specifications :256°C for 5 Seconds
Openrating Temperature:-20°C~+70°C
Current Rating :100mA
Voltage Rating :42VDC 42VAC
Dielectric withstanding vltage
:2000VAC for 1 minute
Contact Resistance :100mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Opearating life :2,000,000 Cycles Min
Soldear Specifications :256°C for 5 Seconds
Openrating Temperature:-20°C~+70°C
Application：
Stage Lighting control equipment
舞台灯光控制设备
Video processor 视频处理器
Matrix Controller 矩阵控制器
Security equipment 安防设备
Cashier Equipment 收银设备

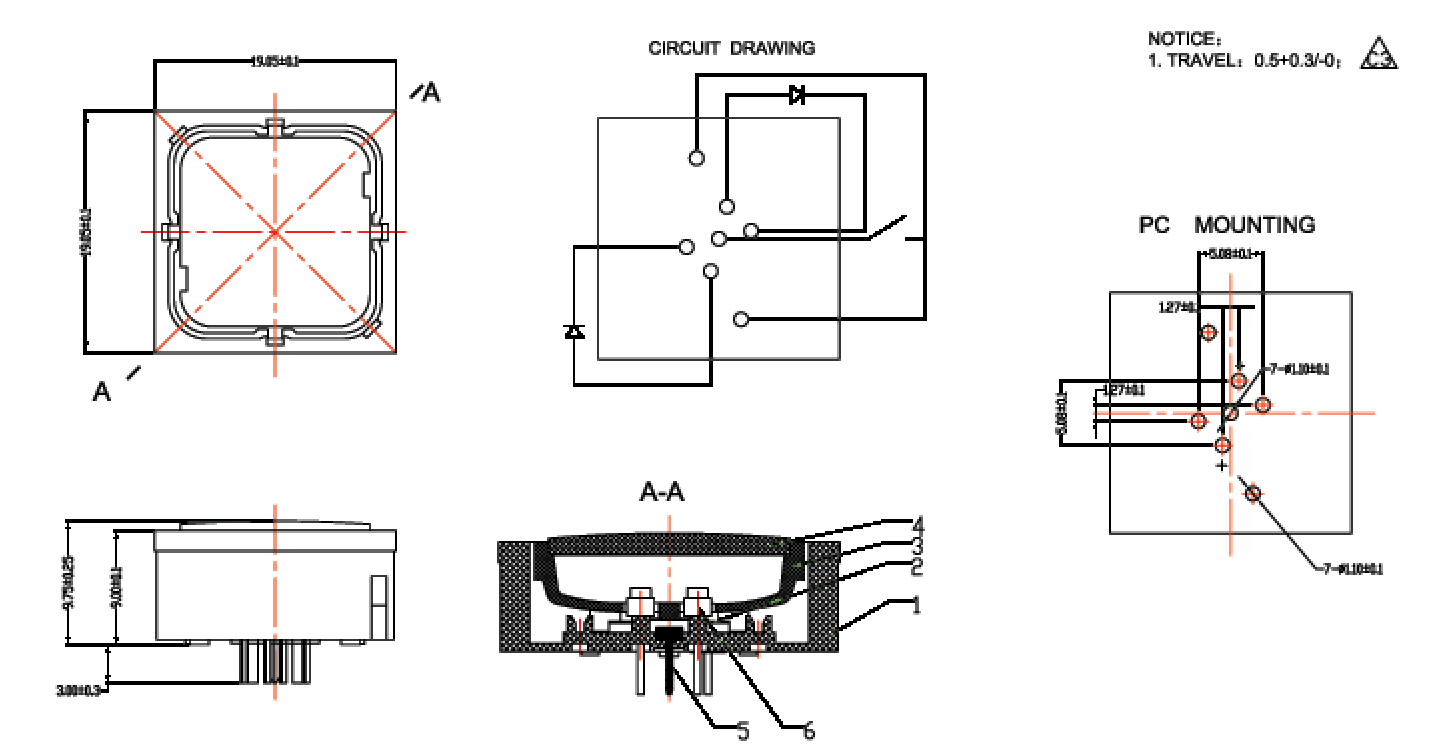

DRAWING
ORDER CODING DIAGRAM
